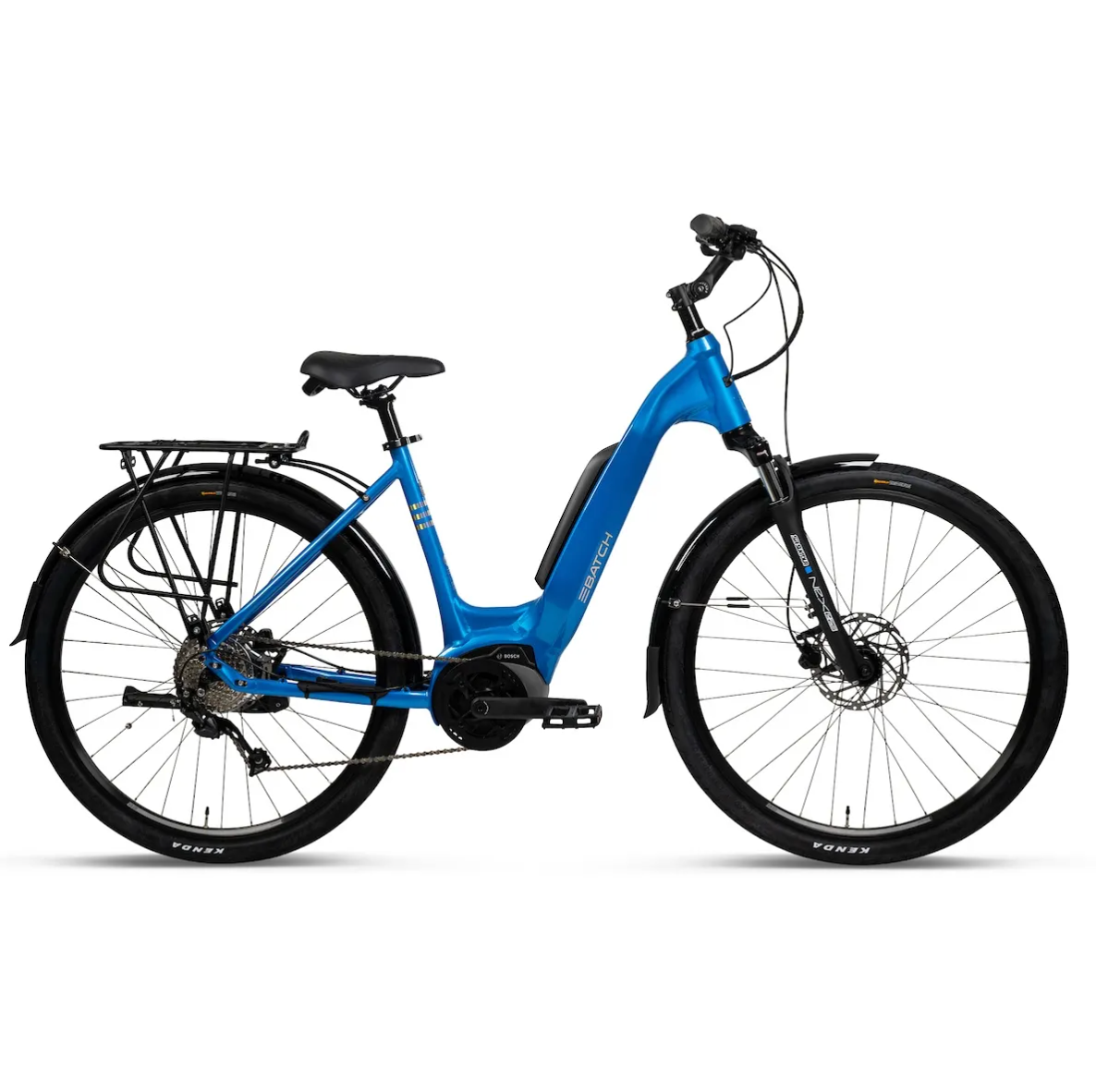

Bosch Active Line Step Through Plus E-Bike
Bosch Active Line Step Through Plus E-Bike
Regular price
$3,799.00
Regular price
Sale price
$3,799.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Bosch Active Line Plus motor and 400wh Powerpack battery on the Step Thru Plus offer optimal support for short cruises and longer tours alike. Go beyond the city limits and explore the world around you by e-bike! The pedal assist power of the Bosch motor will help you go farther on your everyday rides and get up those hills that are usually a chore. With 50nm of smooth, lag-free pedal assist support, your pedaling efforts are matched with exhilarating power from the Bosch drive system. Built for the recreational rider that is looking for a little extra push to get out and ride more.
Size & Geometry Chart
https://www.batchbicycles.com/step-thru-ebike-geometry-charts
| Frame | 6061 Hydroformed aluminum Step Thru design |
|---|---|
| Fork | Suntour NEX Suspension Fork, 63mm travel |

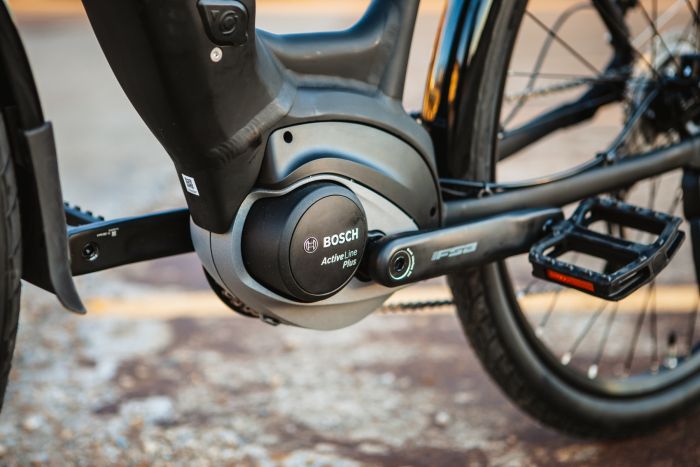

| Motor | Bosch Active Line Plus 3.0 (50Nm) 20 mph |
| Battery | Bosch Powerpack, 400wh, frame mount |
| Headset | FSA threadless |
| Brakes | Tektro HD-M275 Hydraulic Disc |
| Shifters | Shimano SL-M315 9-Speed Rapidfire Plus w/optical gear display |
| Rear Derailleur | Shimano RD-M4000 Alivio 9 speed |
| Cassette | Shimano CS-HG400, 9 speed, 11-36T |
| Chain | KMC X9 |
| Crank | FSA Alloy CK-200 |
| Bottom Bracket | Bosch |
| Tires | Kenda Kwik Journey 700x50c |
| Rims | Aluminum Double Wall, 24mm width |
| Hubs | Formula DC-20/22 32H QR cassette |
| Handlebar | 6061 aluminum, 660mm width, 9D sweep, 25mm rise |
| Stem | Forged aluminum, adjustable angle, S/M 108mm, M/L 128mm |
| Seat | Batch anatomical |
| Seat Post | Forged aluminum, micro-adjust, 350mm x 29.8mm |
